ATV Grapple crane trailer 350-II Hydraulic Roll drive & Winch

Bronco Grapple crane 350-II for ATV. A powerful trailer with it´s own hydraulic system, wheel drive and hydraulic winch. Pallet shipping cost will be added. Some assembly necessary

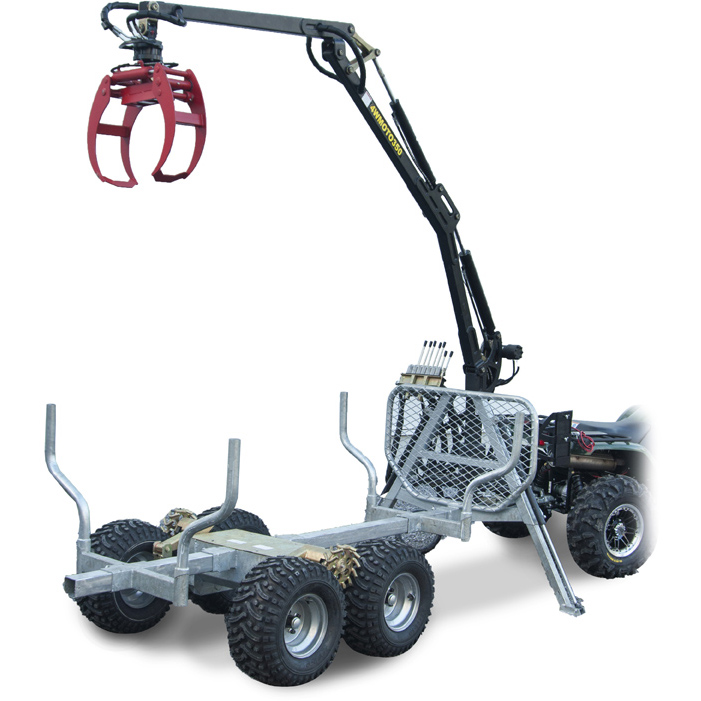

Bronco Grapple crane 350-II for ATV.
A powerful trailer with it´s own hydraulic system, wheel drive and hydraulic winch with 18m cable.
The 7,5hp Ducar gasoline engine provides the power neccessery to get the job done.
Generous ground-clearance and a bogie construction that works perfect with the hydraulic wheel drive that you engage when needed.
Hydrualic support legs to avoid tipping. CE-approved.
3,5m crane with a lifting capacity around 200kg. At 2m the capacity is around 300kg. Max. load capacity: 1500kg.
50mm rotable ball coupling.
Weight: 630kg
Dimensions (LxWxH): 3.65m x 1.1m x 1.4m
Width between extended supporting legs: 1.6m
Max. lifting height: 4.5m
Crane arm length: 3.5m
Max. log diameter: 700mm
Engine: Ducar 7,5hp
Pump capacity: 4ML/R
Work pressure: 16MPa
Hydraulic tank capacity: 5L
Suitable batteries:
Yuasa STD: 14-255
Motobatt STD: 14-511
BS Battery STD: 140-300619
We recommend hydraulic oil 553-83062 (20L) or 553-83061 (5L). Engine oil SAE 30: 553-83052 (1.5L).
